Rectangular Sight Glass Manufacturers

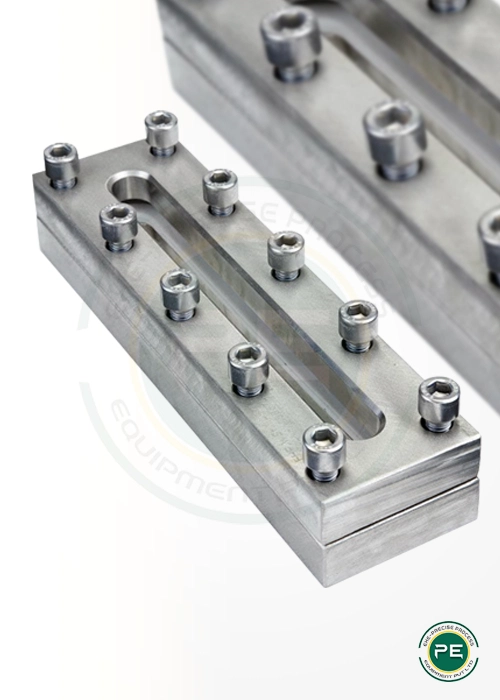

A Rectangular Sight Glass industrial view sight glass is a window used to observe the level, colour, and clarity of liquids in industrial process equipment. Rectangular view sight glasses provide a comprehensive, unobstructed view of the process chamber, making them ideal for use in difficult-to-see areas.
They are often used in conjunction with level gauges to provide a more accurate reading of liquid levels. Rectangular view sight glasses are available in a variety of sizes and configurations to meet the needs of different industries and applications.
- Seal : KLINGERSil C-4400, Neoprene, PTFE or Alternative
- Base Frame : Carbon Steel S235JR+N (RSt 37-2), Stainless Steel 1.4571, 316 Ti or alternative
- Cover Frame : Steel S235JR+N (RSt 37-2), Stainless Steel 1.4571, 316 Ti or alternative
- Securing Bolts : Carbon Steel 8.8 or Stainless Steel A4
- Sight Glass Plate : Soda Lime Glass: thermally prestressed, DIN 8903, max 100°C - borosilicate glass: thermally prestressed, DIN 7081, max 243°C
Design Features
- 100°C when using soda lime glass, DIN 8903
- 243°C when using borosilicate glass, DIN 7081
- These temperatures refer to unprotected glass (i. e. without mica protective sheet)
- If required by customer, and against additional charge, testing and certification can be provided to DIN EN 10204 3.1/3.2
Product Applications
- Pressure 16 bar
- Vacuum
- NB: Before putting the fitting into operation, the strength of the cutout reinforcement in combination with the vessel wall should be checked in accordance with TÜV leaflet
