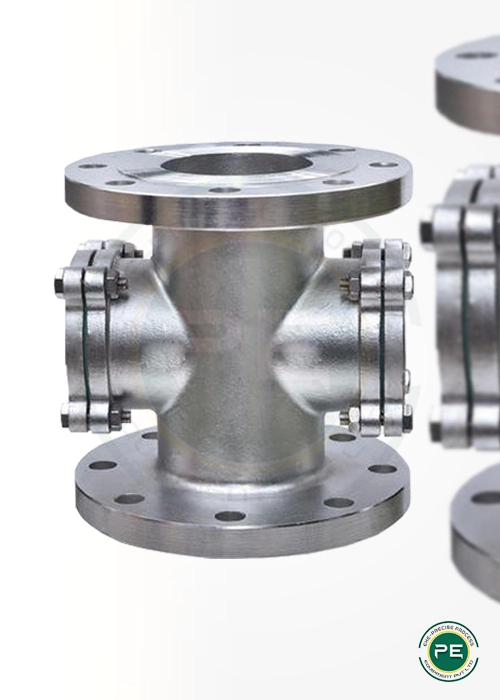

Double Window Sight Glass Manufacturers

Double Window Sight Glasses are two panes of glass in a frame used to give the operator of an industrial process a view of the interior without coming into contact with the process contents. Double window sight glasses are used extensively in the pharmaceutical and chemical industries.

Double windows are also used in high-temperature applications, such as boiler plants. Double windows allow for a clear view of the process contents, as there are no air pockets between the panes of glass. Double windows also offer better resistance to thermal shock, as the two panes of glass act as thermal barriers.

Double windows are an essential part of many industrial processes and offer several advantages over single-pane sight glasses.

• Size : Upto 400 NB Depending upon the Type
• Design Temperature : Upto 200°C Depending upon the Type
• Design Pressure : Upto 20 Kg/cm² Depending upon the Type
• Connection : Flanged to ASA/ABS/DIN/JIS/Screwed BSP/NPT/Butt Weld
• Material of Wetted Parts : CI/ASTMA 216Gr WCB/ASTMA 351CF8/ASTMA 351CF8M/MS/CS/SS304/SS304L/SS316 L and PP/HDPE/PVDF/PFA/PTFE Lined
