Pad Type Sight Glass Manufacturers

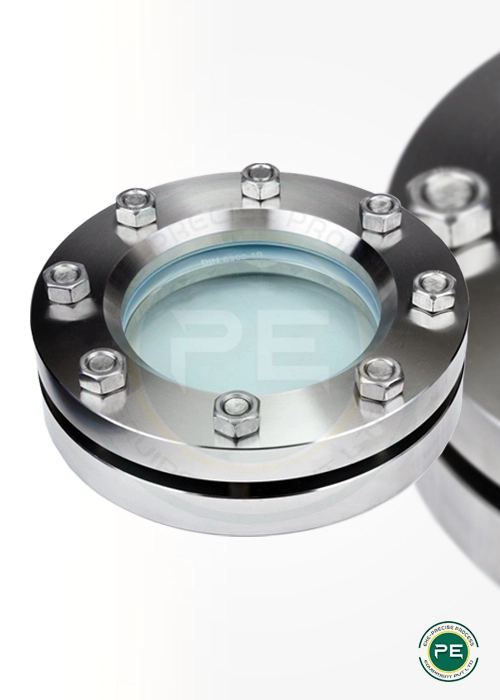

Circular Pad Type Sight Glass industrial sight glasses are created to visualize the contents of a closed vessel under pressure. The glass used can withstand high temperatures and pressures. This type of glass is also usually resistant to chemicals. Circular pad sight glasses are composed of two pieces of glass fused at the edges with a metal or plastic ring. An O-ring is located between the two pieces of glass to create a seal.
These types of sight glasses are designed so that they can be installed in either vertical or horizontal positions. Circular pad sight glasses are popular because they offer several advantages, such as being able to withstand high temperatures and pressures and being resistant to chemicals.
- Cover Flange : Stainless steel 316L or 304L Carbon Steel
- Securing Bolts : Stainless Steel A2 Grade or Carbon Steel
- Base Flange : Stainless Steel 316L or 304L
Technical Specifications
| Gasket | NAF, PTFE, Viton, Food Quality Silicone Rubber or Micaceous Material for High Temperature Applications |
| Sight Glass Disc | Toughened Soda Lime (upto 150°C) to DIN8902 or BS3463, Toughened Borosilicate (upto 280°C) to DIN7080 or Quartz (upto 900°C) |
Design Features
- Meets all requirements of the Pressure Equipment Directive 2014/68/EU
- Sight glass units can be combined with a range of light fittings for use in hazardous or safe areas
- Also available with wiper unit
- Material test certificates to EN102043.1 are issued with all flanges
- Pressure testing can be provided at extra cost
Product Applications
- Rated for pressures up to 5 bar depending on size
- Temperature rating up to 900°C depending on seal and glass selection
- Construction based on guidance of the German Standard DIN28120 and relevant parts of BS PD5500 and ASME VIII, div 1 standards
