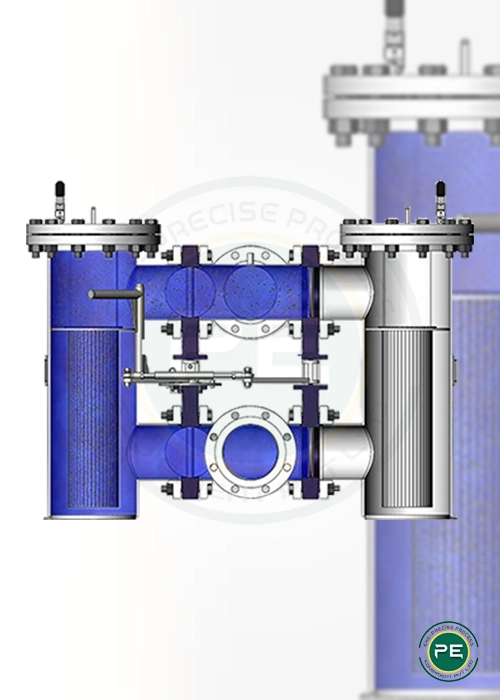

Duplex Backwash System Manufacturers
The Duplex Backwash System is a two-stage filtration system that allows for continuous operation even while one strainer is being cleaned. The backwash system flushes out the contaminants that have been filtered from the fluid, keeping your process fluids clean and free of unwanted particles.
This system is perfect for use in any industry where process fluids must be kept free of contaminants, including, pharmaceutical, and chemical processing. The Duplex Backwash System is essential for any business that wants to keep its process fluids clean and free of contaminants.
Depending on the requirements these systems are made out of different grades of stainless steel.
- Size : Available from 1“ Line Size to 4” (Higher sizes available on request)
- Materials of Construction / Housing : Carbon Steel
- End Connection : Flanged [As per requested Table]
- Pressure Rating : Upto 1000 PSI.High -pressure rating avail
Technical Specifications
| Stainless steel in various grades | other materials and coating available on request |
| Filter Element | Carbon steel, Stainless steel in various grades - Other materials available on request |
| Filtration Rating | Filtration rating available from 5 microns to 1000 micron |
Design Features
- Can be installed in horizontal or vertical pipelines
- Drain connections standard and are furnished with plug
- Perforated screen with 40 Mesh linings are standard
- Other reining’s shall be done on request
- Vent valve can be provided with valve on request
- To meet high temperature and high pressure with suitable MOC and Sealing parts
Product Applications
- Pump protection
- Flow meter protection
- Valve & regulator processes
- Protection of heat exchanger & refrigerating set
- Instrumentation and Piping item protection
