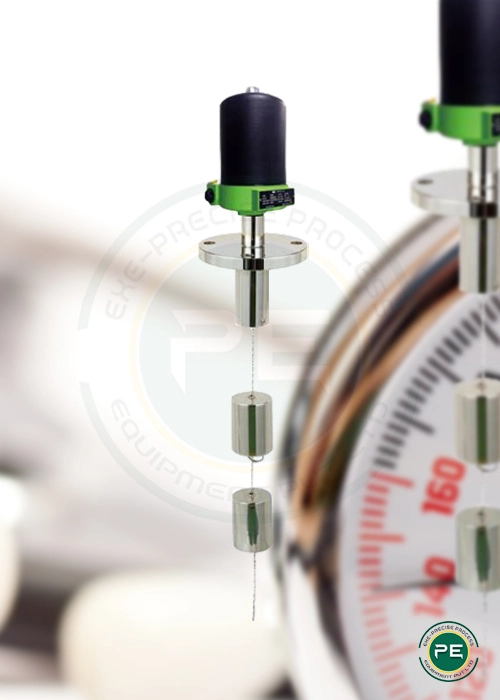

Top Mounted Displacer Level Switch Manufacturers
The Top Mounted, Displacer Level Switch, monitors fluid levels in containers. They have a float assembly mounted on a spring, which works on the principles of buoyancy. These floats are either partially or fully submerged in the medium in question, negating the errors caused by the pressure in those mediums and froth's effect.
When the float comes in contact with the fluid, it creates a buoyancy which exerts a force on it by changing its weight in the system, and this change is translated to the coiled spring on which it is suspended. This change in the position of the coiled spring translates to an external indicator via electric or mechanical means.
- Accuracy : +/- 10 mm
- Terminals : Suitable for 2.5 mm2, Conductor Size
- Wetted Parts : SS 316 Polypropylene
- Output : 1/2 c/o @ 5A, 230 VAC (Resistive)
Technical Specifications
| Measuring Range | 300 mm (Min.) 20,000 mm (Max.) |
| Operating Differential | Standard: 25 ±10 mm (Max) Optional: Adjustable |
| Temperature Range | 00 C to 1500 C (Std) 00 C to 3500 C (Optional for WP Version) |
| Working Pressure | WP version: 10 Kg/Cm2 (Max) FLP Version: 10 to 40 Kg/Cm2 |
| Enclosure | Weatherproof to IP-67 as per IS/IEC 60529:2001 Flameproof enclosure as per IS/IEC 60079-1:2007 Suitable for Gr IIA, IIB, IIC |
| Density | WP version: 0.9 to 1.2 Kg/m3 (mainly for water duty) FLP version: 0.7 to 0.9 Kg/m3 (mainly for petroleum products) |
Product Applications
- Level Alarm Contacts for Water, Petroleum and Chemical Duties
