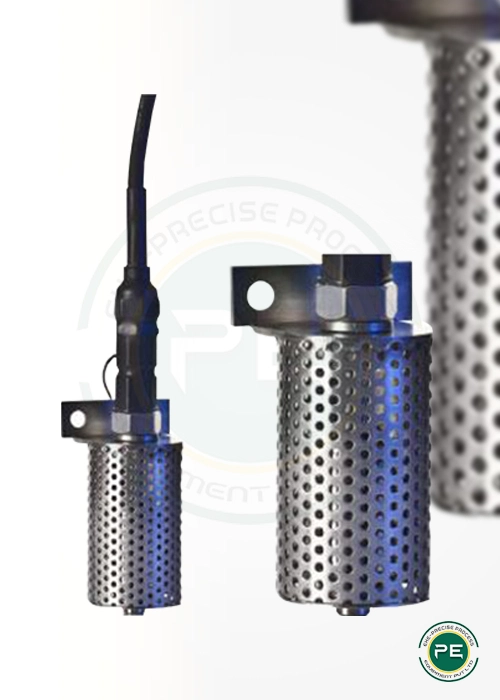

Bilge Level Switch Manufacturers
Bilge-level switches are commonly used in industrial applications to monitor the level of liquids. Bilge level switches work by detecting the hydrostatic pressure of the fluid in the tank and sending a signal to a control panel or PLC when the level reaches a predetermined point.
Bilge-level switches are typically made of stainless steel. Bilge level switches can be used in various industries, including, chemical processing and water treatment. Bilge-level switches are an essential part of any liquid-level monitoring system. Bilge level switches provide a safe and reliable way to monitor fluid levels in tanks, preventing overfilling and spillage.
In addition, bilge-level switches can trigger alarms or shut off pumps when the fluid level reaches a certain point. Bilge-level switches are an essential part of any liquid-handling system.
- Service : Water, Water+Oil
- Max Temp : 100 °C
- Max Temp Pressure : 10 Kg/cm²
- Min Liquid Sp.Gr. : 0.8
Technical Specifications
| Switch Type | Magnetically operated |
| Float & Guid Tube | SS316 |
| Switching Mechanism | Glass encapsulated hermetically sealed Reed Switch |
| Contact Rating | 60VA (SPDT) |
| Max S/W Votage | 230VAC/DC |
| Max S/W Current | 2A |
| Switch Differential | 3~5mm |
| Termination | 3 Core x 0.75 mm² rubber sheathed 10 mtrs long cable |
| Ingress Protection | IP-68 |
Product Applications
- Effluent Treatment Plants
- Sewage Treatment Plants
- Pulp & Paper Industry
- Chemicals & Fertilizers
- Food & Drug Industry
