Transparent Level Indicator Manufacturers

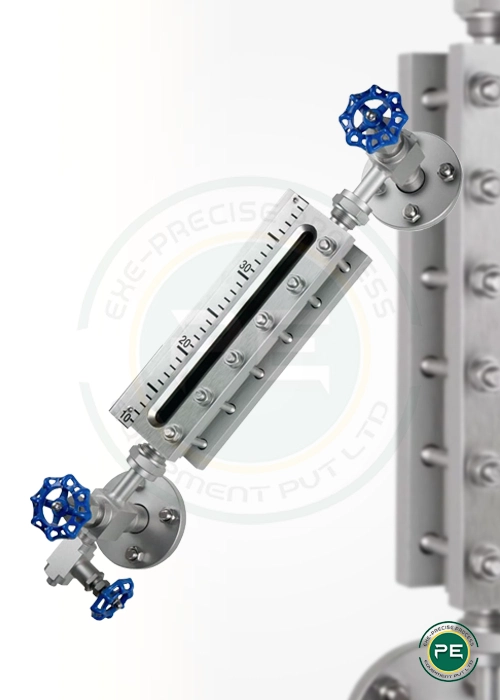

Reflex Transparent Level Indicator measure the level of fluids. There are various approaches which are followed for the construction of this instrument. The most common way these things are constructed is that they consist of two transparent glasses where light can enter from the back and exit from the front of the gauge, thus illuminating the level of liquid in the chamber separating the two glasses. An illuminator used as a light source is located at the back of the gauge.
The effects of steam and corrosiveness associated with particular fluids are compensated by using Mica and Kei-F shields correspondingly.
- Fluid Type : Liquid
- Body : MS, CS, SS304, SS316, PP as Standard
- Connection : Flanged, Screwed with Vertical or Horizontal Orientation
- Vent/ Drain : "Plug (BSP/NPT)
- Drain Valve : "Needle/Ball/Diaphragm Type if Required
Technical Specifications
| Construction | Standard/Large Chamber or Weld Pad |
| Glass Plates | Tempered borosilicate (indigenous or klinger) in 30 mm width as Standard |
| Sealing Gasket/Cushion | CAF, PTFE (Indigenous) or Klingerite |
| Cover Plate | MS, CS, SS304, SS316, PP as Standard |
| Bolts/ Nuts | MS or Graded Alloy Steel for High Temperature |
| C/C Distance | 1600 mm in single length. Extended ranges through a Coupler |
| Chamber Entry | Top or Side/ Rear |
| Max. Pressure | 0-30 Kg/cm (Indigenous glass), 0-65 (Klinger Glass) |
| Max. Temperature | 0-300C (Indigenous glass), 0-400 (Klinger Glass) |
| Scale | Al/SS Scale Calibrated for Level Values in mm/inches With LC 5 mm as Standard or 1 mm on Request |
Product Applications
- Effluent Treatment Plants
- Sewage Treatment Plants
- Pulp & Paper Industry
- Chemicals & Fertilizers
- Food & Drug Industry
