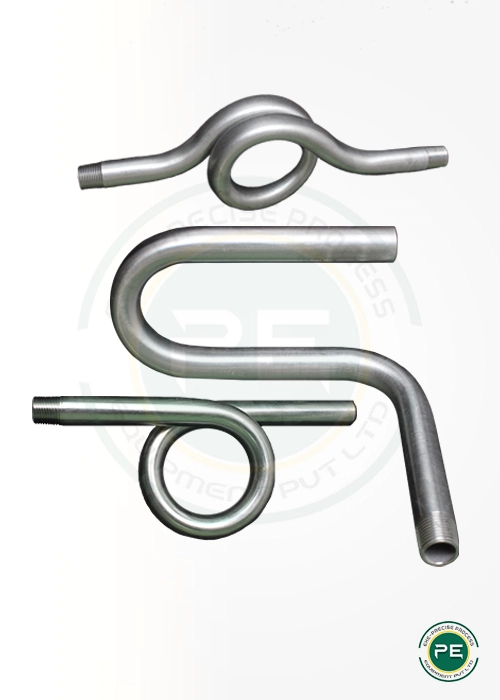

Syphon Pipe Manufacturers
A syphon pipe, also spelt as Siphon pipe, refers to any device that facilitates fluid flow from a container located at a higher level to another container located at a lower level using the force of gravity. This device is not powered and is usually shaped like a bent tube with two legs of unequal lengths. It typically carries the fluid over a barrier, and the construction of such pipes depends on the implementation of their use.
They are widely used in almost all the present process systems. They can be specially manufactured to meet specific conditions for the process mediums they are designed to handle.
- Size : 1/4", 3/8" and 1/2" BSP / NPT
- Max Pressure : 120 Degree
- End Connection : NPT / BSPP / BSPT
- Material : 316 SS / 316L SS,CS / 304 SS
Material of Construction
| Titanium | Garde : Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 |
| Stainless Steel | Grade : ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404C |
| Carbon Steel | Grade : ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70, SA105 |
| Duplex Steel | Grade : ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 |
| Alloy Steel | Grade : ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19 |
Product Applications
- To carry water from one reservoir to another reservoir separated by a hill or ridge
- To take out the liquid from the tank which is not having any outlet
- To empty a channel not provided with any outlet sluice
- Utilities Water
- Chemical Handling
- Structure Pipe
