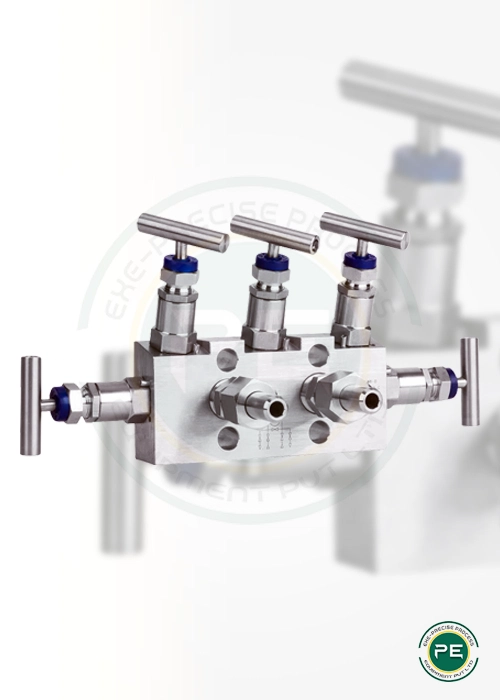

Manifold Valve Manufacturers
A manifold valve connects multiple valves to provide a flexible, modular system for controlling flow. They are basically like switchboards which control the fluid flows between the different components of the processing system. They help control the pressure in the entire hydraulic system and prevent any backflows or breakdowns. In terms of the industrial scale, there are three main types of manifold valves.
The choice depends on the individual requirements of each process system. They come in various shapes and sizes and can be mounted vertically and horizontally. The choice of material is also subject to the medium of the process environment and varies accordingly. They can be easily customized as per the situation and used all over the industrial spectrum.
- Size : 1/8" TO 1"
- Thread : NPT, BSPP, BSPT
- Connection : Threaded, Flange End
- Type : R Type, T Type, H Type
Technical Specifications
| Function | 2 Way, 3 Way, 5 Way |
| Body Shape | Square Rectangle |
| Pressure Rating | 1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15,000 PSI |
| Orifice Size | 2 MM TO 9.5 MM |
| Media Temperature | (-120* C TO 500*C ) Range as per Pressure |
| Body Type | Bar Stock, Stocked |
| Handle | Bar T-Handle |
| Packing Details | Box Packing, Wooden Pallet |
| Material | SS 316, Ss 304, SS 316 Ti, Copper, Brass, Duplex, CS, Inconel, Super Duplex, Hastelloy, Monel, Alloy 20, SMO 254, 904l, Titanium & All Other Alloys |
Product Applications
- Oil and gas
- Chemical industry
- Power industry
- Wastewater
- Steel industry
- Pulp and paper industry
