Water Meter with Magnetic Drive Manufacturers
Water flow meters are mechanical devices used to measure water flow volume in pipes. In their basic form, they have a paddle-like rotating piston or a turbine inside which rotates in proportion to the medium flow. This rotation is then calculated to measure the volume of the fluid velocity.
They are simple and robust and require low maintenance. Their accuracy is not as great as other more sophisticated devices like ultrasonic flowmeters.
These instruments are very reliable and easy to maintain, and are easy to construct. However, they wear out over time depending on the wear and tear of the moving parts inside them.
- Water Temperature 500C
- Water Pressure 1MPa
- Pressure Loss < 0.1 Pa
- Maximum Pressure-16 Bar
Performance Data
| Size of The Meter | 15mm | 20mm |
| ½ Inch | ¾ Inch | |
| Maximum Recording Capacity in Kilo Litres | 99999.9999 | 99999.9999 |
| Minimum Reading Quantity in Litres | 0.2 | 0.2 |
| Hydrostatic Test | 2.0 MPa | 2.0 MPa |
| Maximum Flow Rate in Qmax-Lts./Hr. | 3000 | 5000 |
| Nominal Flow Rate Qn- Lts./Hr. Class B | 1500 | 2500 |
| Transitional Flow Rate Qn. Lts./Hr. Class B | 120 | 200 |
| Metering Accuracy | ±2% | ±2% |
| Minimum starting flow Qmin-Lts./Hr. Class B | 30 | 50 |
Types of Water Meter
We manufacture all types of water meter with magnetic drive..!

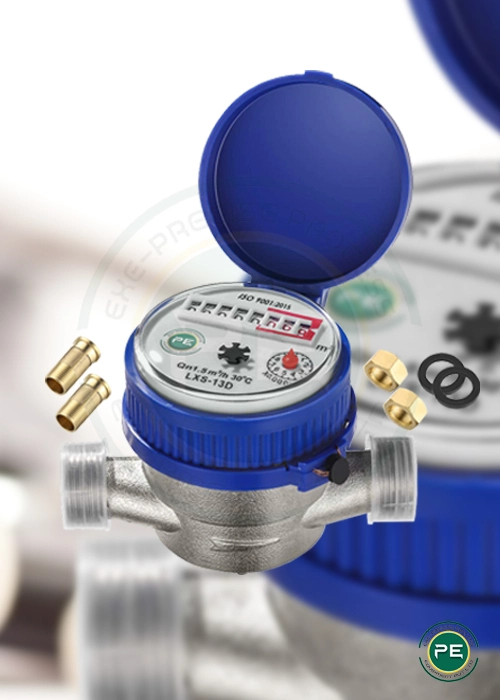

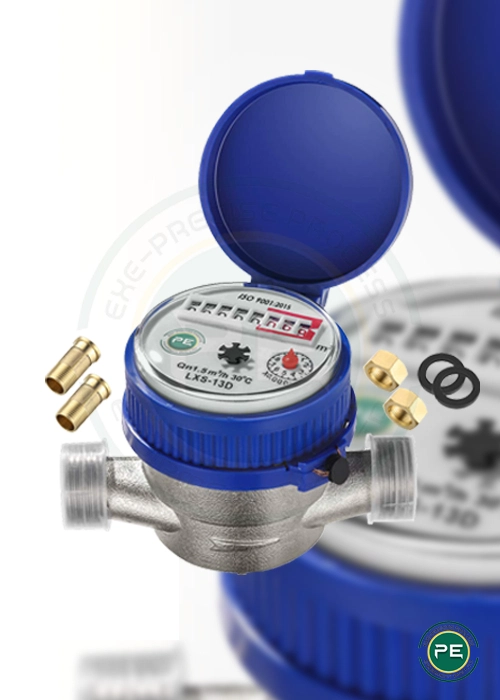

Single Jet Water Meter with Magnetic Drive

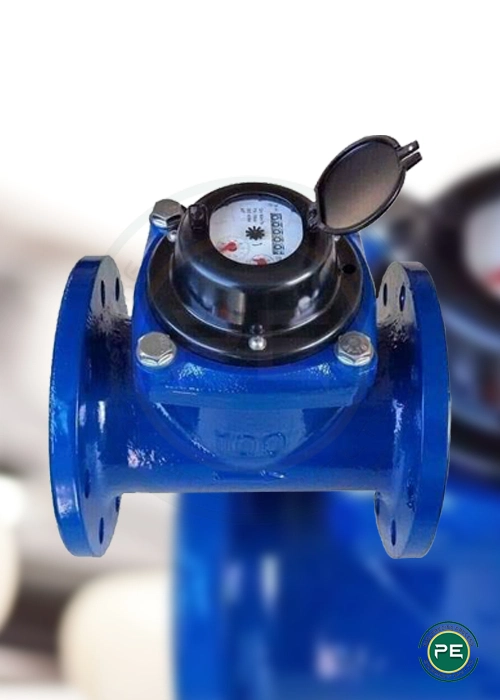

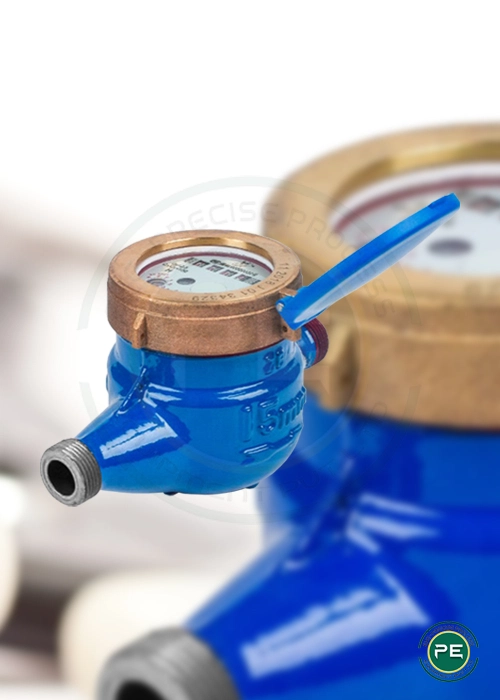

Multi Jet Water Meter with Magnetic Drive
