Orifice Plate Manufacturers

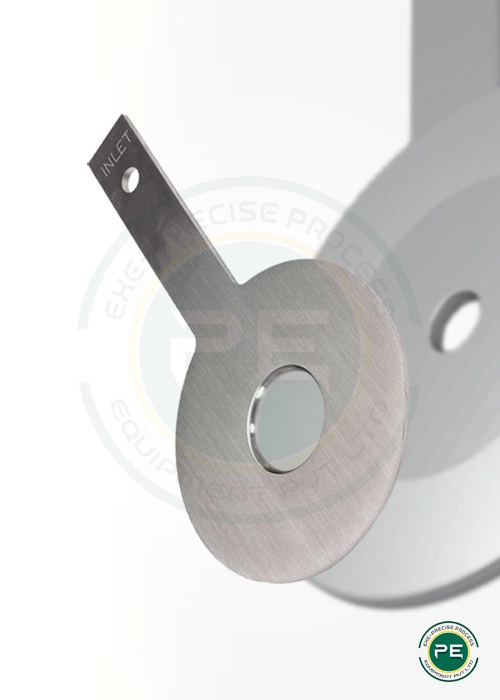

An orifice plate is a thin plate with a hole in the centre that measures the flow rate of liquids and gases. The plate is placed in the middle of a pipe, and the liquid or gas flows through the hole.
Orifice plates are used in industry for measuring the flow of liquids and gases. Orifice plates are available in different sizes or with different orifice diameters to suit the particular application. There are also different types of orifice plates, such as square-edged or concentric, to suit different types of meters.
Generally speaking, orifice plates are simple and inexpensive devices widely used in industry for flow measurement.
- Size of Flange/Type/Rating/Schedule/Standard.
- Flanges : CARBON STEEL/ ASTM A105/ ASTM A182 /ASTM A350/SS304/SS304L/SS316/SS316L/PP/PTFE
- Material Available : SS304/SS304L/SS316/SS316L/MONEL/HAST ALLOY/PP/PTFE OTHER MATERIAL ON REQUEST.
Technical Specifications
| Gasket | CAF / SS Spiral Wound + CAF / PTFE / PVC / Rubber, Other materials as per special request. |
| Stud / Nut | ASTM A193 Gr. B7/ASTM A194 Gr.2H, B7M/2HM, A193 B16/A194 Gr. 4 |
| Design Standards | ISO 5167/ BS 1042 / RW Miller / ISO TR-15377 |
| Flanges | ANSI B-16.36/B16.5/AWWA/ASME B16.47/ IS 6392 / BS 10 etc. |
| Orifice Plate Types | Square edge concentric, Quadrant edges, Conical entrance, Eccentric, segmental, Restriction |
| Pressure Tappings | Flange Taps / Corner Taps / Radius taps |
Product Applications
- Effluent Treatment Plants
- Sewage Treatment Plants
- Pulp & Paper Industry
- Chemicals & Fertilizers
- Food & Drug Industry
